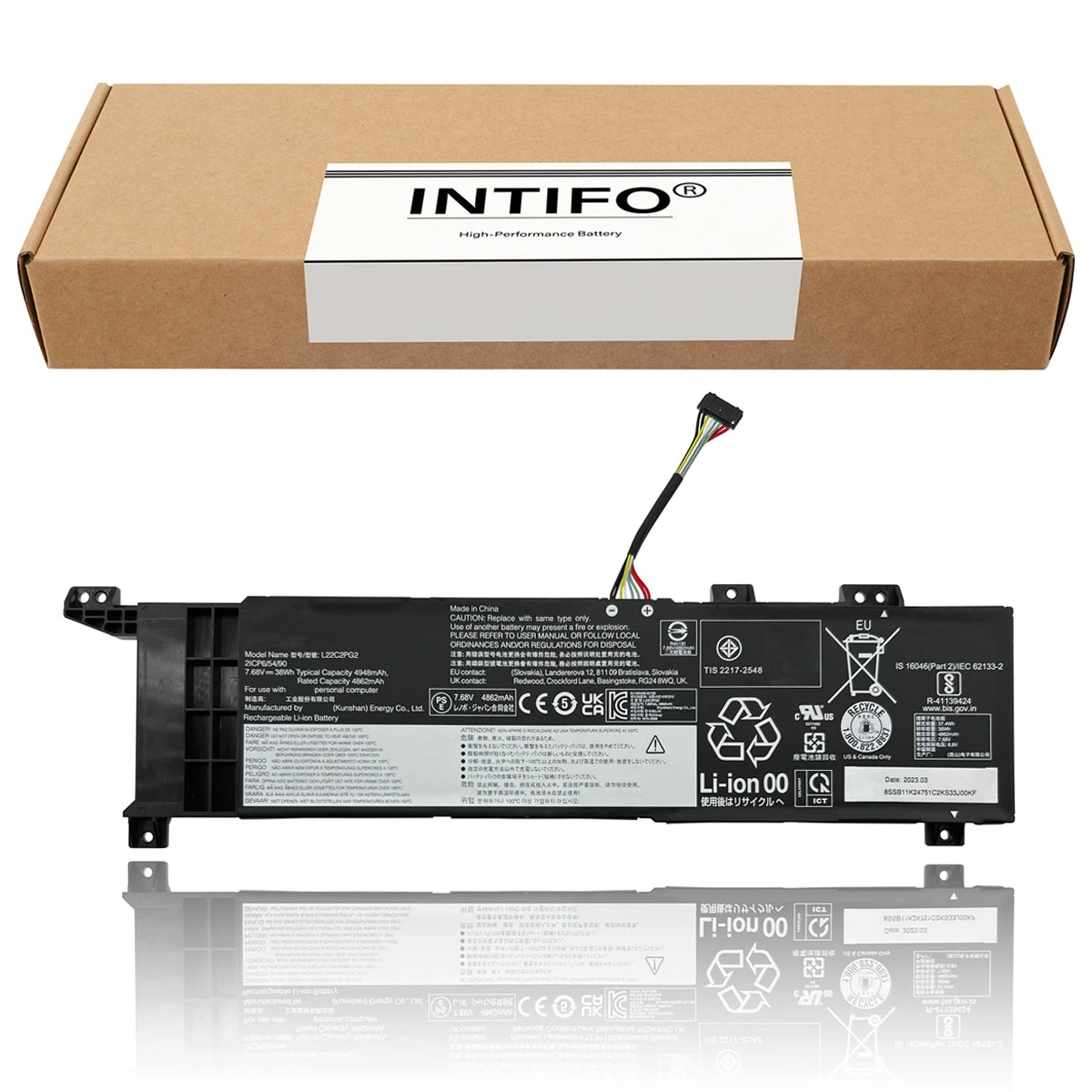

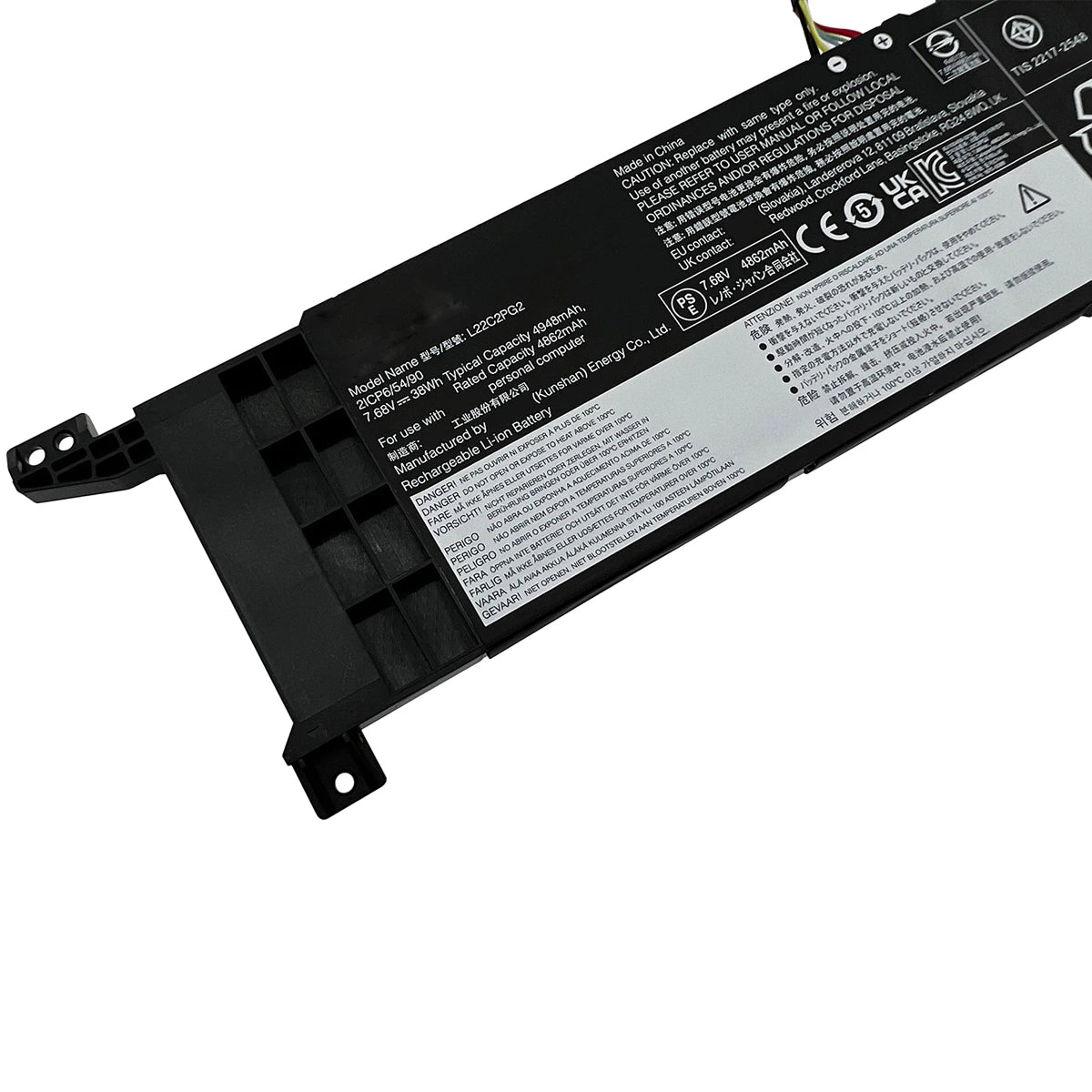

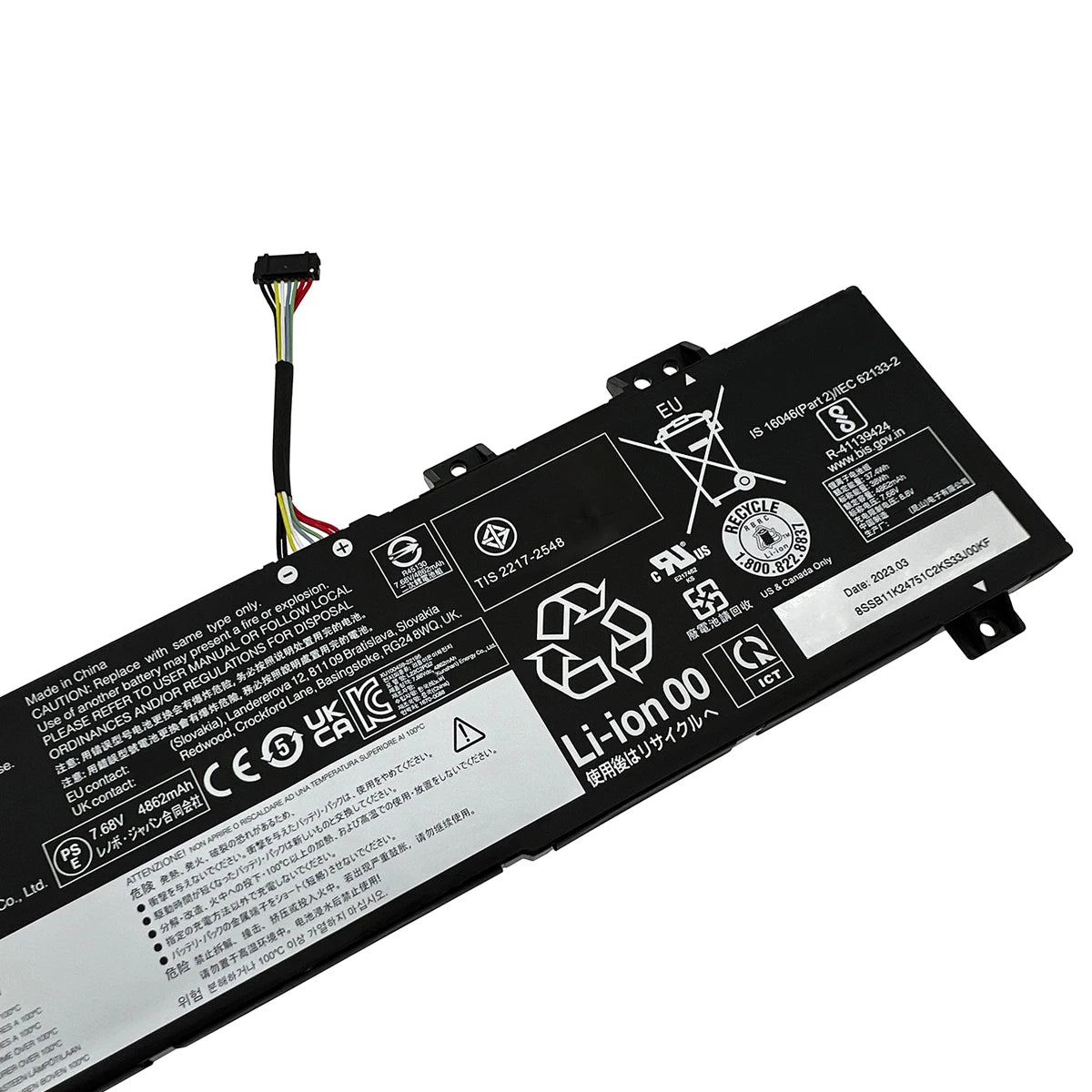

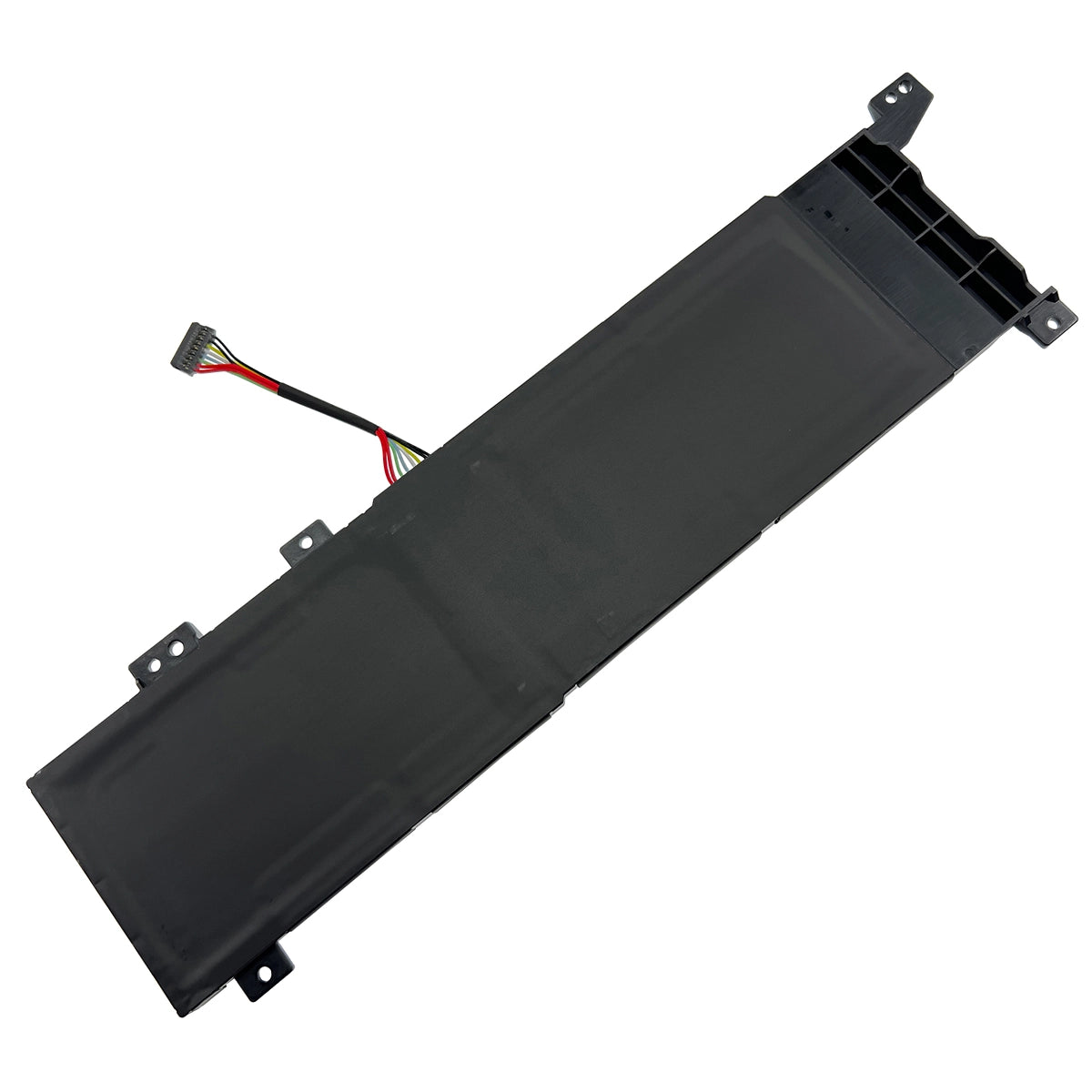

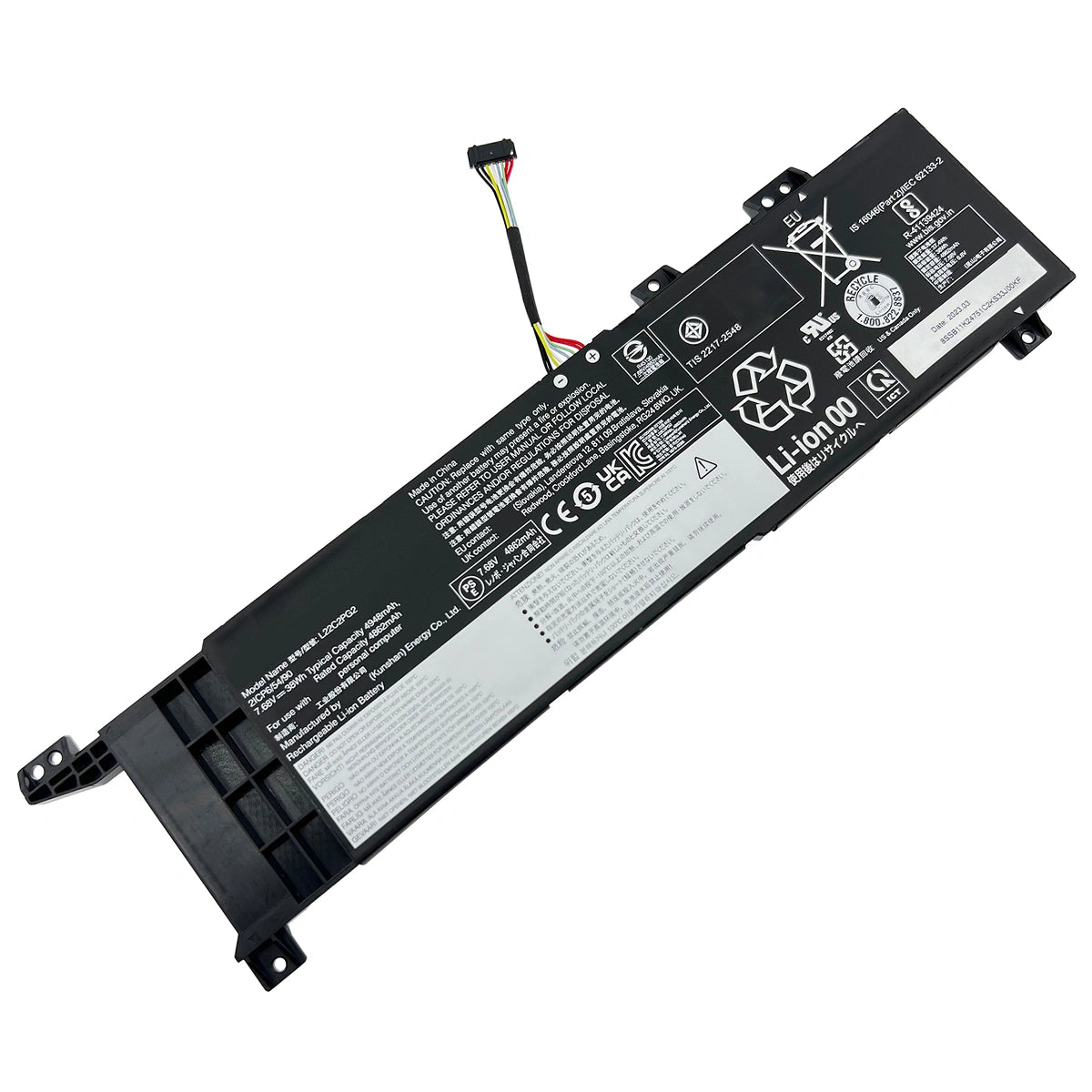

INTIFO L22C2PG2 Laptop Battery Compatible with Lenovo V14 V15 G4 AMN IAN 82YT 82YU L22D2PG2 L22M2PG2
INTIFO L22C2PG2 Laptop Battery Compatible with Lenovo V14 V15 G4 AMN IAN 82YT 82YU L22D2PG2 L22M2PG2
Welcome to INTIFO
Rechargeable Laptop Battery
Smart Design, Grade A material, Perfect Compatibility, Professional & High-Performance
Specifications
Condition: Brand New
Manufacturer Warranty:One-year
Model: L22C2PG2
Voltage: 7.68V
Capacity: 4948mAh/38Wh
Cells: 2-Cell
Battery Type: Li-ion
Replacement for Part Number:
L22C2PG2 SB11K24751 5B11K24753 SB11N45968 5B11N46029
L22B2PG2 SB11K24750 5B11K24752 SB11N46008 5B11N45970
L22D2PG2 SB11K24749 5B11K24746 SB11N56337 5B11N56339
L22M2PG2 SB11K24748 5B11K24747 SB11N45986 5B11N45996
Compatible with Laptop Models:
Lenovo V14 G4 AMN (Type 82YT/83GE) Series,
Lenovo V14 G4 IAN (Type 82YV) Series,
Lenovo V15 G4 AMN (Type 82YU/83CQ) Series,
Lenovo V15 G4 IAN (Type 82YW) Series
| Battery Model | L22C2PG2 |
| Voltage | 7.68V |
| Capacity | 4948mAh/38Wh |
| Battery Size | 9.01 x 2.28 x 0.26 inches |
| Battery Weight | 156g |
| Accessories Included | Screwdriver Tool*1、Product Manual*1 |
How to find correct battery for your device?
1. Please remove the old battery from the device.
2. Find the model number on the label of battery.
3. Compare the model number with the compatible models in our product description, if they are the same, that is correct battery for your device.
Correct steps to install a laptop battery：
1. Turn off the laptop and disconnect the AC power.
2. Open the back cover of laptop, unscrew screws of the old battery one by one, then disconnect the connection between the old battery and the motherboard.
3. Remove the old battery, then install the new battery carefully to its position, reset and tighten the removed screws, and connect the cable of the new battery.
4. Connect the AC power and turn on the laptop.
5. Discharge the new battery to 5% (not 0%), then charge fully and cycle 3-4 times is the best way to wake up a new battery.
Installing new battery frequently asked question solution:
Q: Why my laptop can't recognize this battery or it doesn't seem to work when installing?
A: 1. Please check if the interface is clean to make sure it is fully connected.
2. The residual power stored in the laptop components which was preventing the battery from working properly. Please disconnect the old battery, and hold down the power button for 20 seconds, then connect the new battery. This drains the residual or flea power and the battery will be functional properly once it's reassembled.
Q: New battery can be charged fully, but why it will be shut down without AC adapter?
A: 1. Please check whether the laptop power management option settings are protected. If yes, please reset it again.
2. Please check Device Manager of laptop to check whether the option of battery is stopped using.
